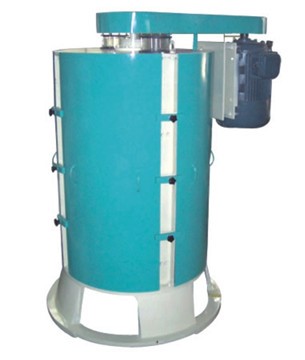

該機是我吸收意大利脫胚機的基礎上在1996年自主研發設備，是集脫胚、破碴與一體的設備，以打、搓、揉的原理，進行玉米干法脫胚。該設備由數個齒板組成的固定齒圈中間裝有一個可拆卸的轉子，轉子和機架分別安裝于底座。轉子上端的皮帶輪通過皮帶與電機相連。其轉子在固定齒圈中可以轉動，固定齒圈與轉子并保持有一定間隙。轉子由三塊轉盤和十二條打板組成。
This series of equipment, developed by our company independently in 1996 based on Italian degerming machine, has both degerming and breaking functions. Dry-type corn degerming is conducted on the principle of hitting and rubbing. The equipment is equipped with a fixed tooth ring which is made up of several toothed plates, with a dismountable rotor set in the middle. The rotor and rack are installed on the pedestal separately. The belt pulley on the rotor is connected with the motor via a belt. The rotor in the middle of the fixed tooth ring can rotate, and there is a certain space between the fixed tooth ring and the rotor. The rotor consists of three turntables and twelve plates.
特點：
Characteristics:
1、設備機身采用翻砂鑄鐵件，使用壽命長，設備運行平穩；
The equipment body is made of sand-cast pig iron, so the equipment has a long service life and can operate stably;
2、設備能耗低，后期使用成本低；
The equipment is featured with low energy consumption and low operation cost in the later period;
3、設備密封性好，加工過程中無塵粉外揚；
It is featured with satisfactory sealing effect, free of flying dust during processing;
4、設備采用拼裝式打板，后期拆卸維修方便；
Split mounting type plate is adopted for the equipment, which provides convenience for later disassembly and maintenance;
技術參數：
Technical parameters:
|
技術參數 型號 Model |
產量（t/h） Output (t/h) |
動力 Power (kw) |
質量 Mass (kg) |
外形尺寸（長×寬×高）mm Boundary dimension (L × W × H) mm |
|
DTP45×72 |
2-3 |
5.5-7.5 |
1500 |
1150×900×1900 |
|
DTP75×100 |
4-6 |
18.5 |
2000 |
1550×1150×2100 |
